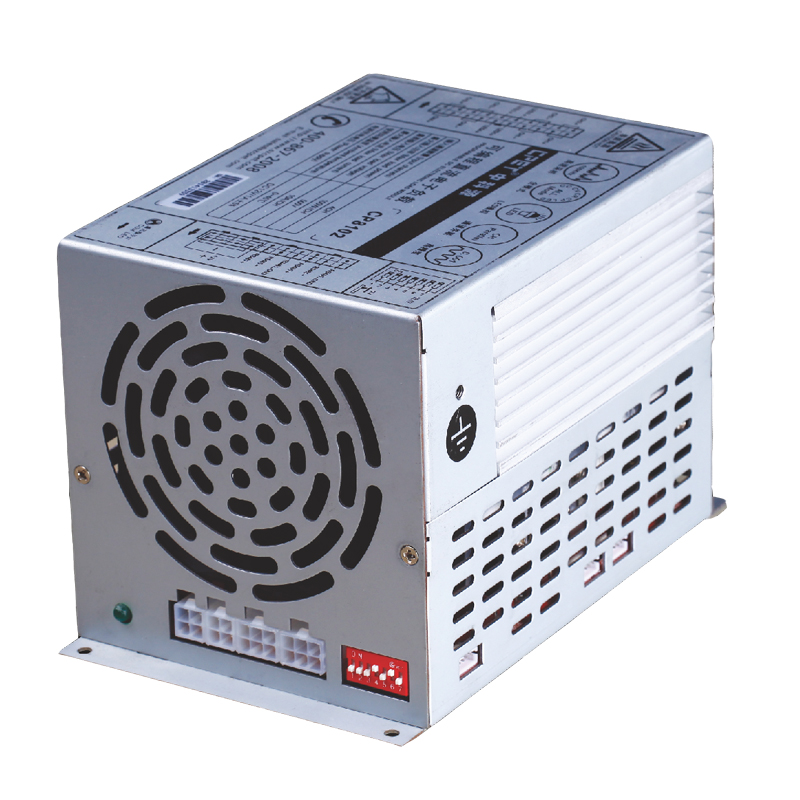

CPET CP8210 电子负载

  • 品  牌: CPET
  • 规格型号: CP8210
  • 浏览量: 339
  • 发布时间: 2019-12-31

暂无

Model

CP8102

CP8103

CP8108


Quantity of channels


4-channel


4-channel


8-channel


Parallel connection of channels


Support


Support


Support


The maximum input power of each channel

100W

125W

40W


Total maximum input power of module

400W

500W

320W


Input current/channel

0.05A~10A

0.05A~10A

0.05A~5A


The minimum operating voltage

1V@2.5A, 3V@10A

1V@2.5A, 3V@10A

2V@2.5A, 3V@5A


Maximum input voltage

450V

450V

450V


CC (constant current) load mode


Measuring range


Low range
0.05A~2.5A


High range
2.5A-10A


Low range
0.05A~2.5A


High range
2.5A-10A


Low range
0.05A~2.5A


High range
2.5A-5A

解析度
Resolution

1mA

10mA

1mA

10mA

1mA

10mA

精度
Precision

±(1%+0.05%FS)



±(1%+0.05%FS)


CV (constant voltage) load mode


Measuring range


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V


Resolution

0.012V

0.12V

0.012V

0.12V

0.012V

0.12V


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


CR (constant resistance) load mode


Measuring range

0.4O~9.999kO

0.4O~9.999kO

0.4O~9.999kO


Resolution

12bit

12bit

12bit


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


CP (constant power) load mode


Measuring range

100W

125W

40W


Resolution

50mW

50mW

50mW


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


LED load mode


Measuring range

Vo


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V

Io


Low range
0.05A~2A


High range
2A-10A


Low range
0.05A~2A


High range
2A-10A


Low range
0.05A~2A


High range
2A-5A

Rd

0.001~0.999



0.001~0.999


Resolution

Vo

0.012V

0.12V

0.012V

0.12V

0.012V

0.12V

Io

1mA

10mA

1mA

10mA

1mA

10mA

Rd

0.001

0.001

0.001


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


Current measurement


Measuring range


Low range
0.05A~2.5A


High range
2.5A-10A


Low range
0.05A~2.5A


High range
2.5A-10A


Low range
0.05A~2.5A


High range
2.5A-5A


Resolution

1mA

10mA

1mA

10mA

1mA

10mA


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


Voltage measurement


Measuring range


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V


Low range
1V~50V


High range
50V~450V


Resolution

0.005V

0.05V

0.005V

0.05V

0.005V

0.05V


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)


Power measurement


Measuring range

100W

125W

40W


Resolution

50mW

50mW

50mW


Precision

±(1%+0.05%FS)

±(1%+0.05%FS)

±(1%+0.05%FS)
